Tilt and Turn Windows

Aluminium tilt and turn windows

Let light and fresh air into your property with tilt-and-turn aluminium windows from Atlas. These versatile designs give you full freedom to open and close as you wish, from both the bottom hinge and side hinge to create the perfect home environment. With quick glaze beading, they’re easy to install and will fit into your property’s aesthetic – offering security and energy efficiency as standard.

Why choose atlas?

built for quality

We manufacture to the highest standards using premium materials.

made to perform

Products are secure, thermally efficient, and meet building regulations.

approved installers

Approved partner installers ensure every product is fitted perfectly.

nationwide coverage

We operate across the UK, supporting homes nationwide.

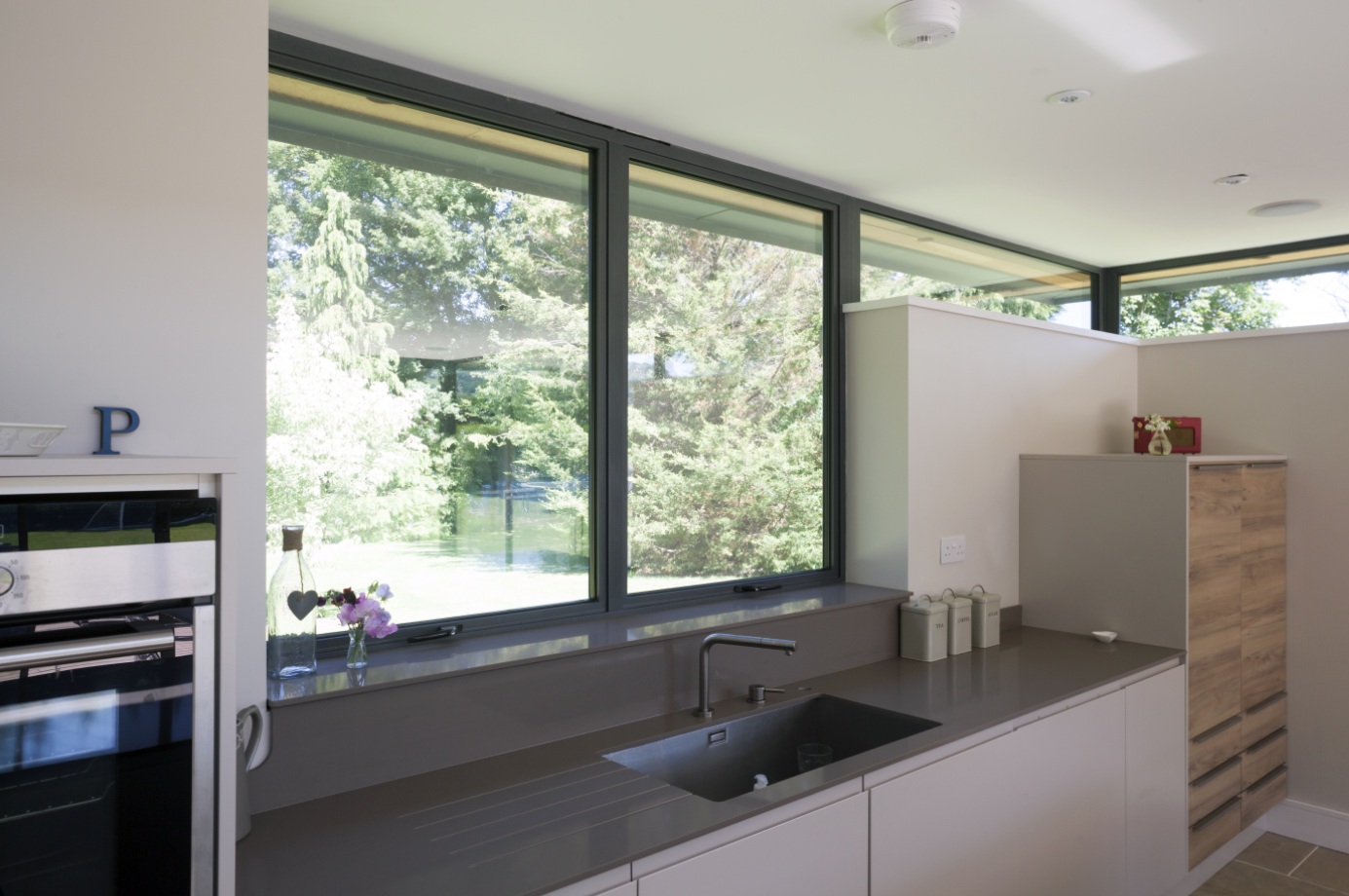

Atlas Tilt & Turn Windows

Our tilt and turn windows offer a practical and flexible solution for modern homes. Their dual opening system allows the window to tilt inward from the top for secure ventilation or open fully from the side for easy cleaning and maximum airflow.

Made from durable aluminium, they provide long-lasting performance, excellent insulation, and low maintenance. Designed to resist rust, warping, and fading while maintaining their sleek appearance, the thermally broken profile ensures excellent energy efficiency.

Complemented by advanced Sobinco gearing for enhanced security and outstanding weather resistance, these windows provide comfort and reliability in any environment.

Our simple process

Browse our windows,
doors and glazed roof
systems.

Get in touch to
tell us what you’re
interested in.

We’ll match you
with an approved
installer.

Confirm your choice
and look forward to
installation.

Fix tilt and turn windows

With strong aluminium frames and modern glazing performance, they provide a reliable, long-lasting solution that can perfectly suit the look and feel of your home.

Durable

Resistant to rust, warping, and fading for long-term performance.

Energy efficient

Polyamide thermally broken profile with WER A rating.

Security certified

Sobinco gearing and locking system.

Weatherproof

Class 4 600Pa air, Class 9A 600Pa water and Class BC 2400Pa wind.

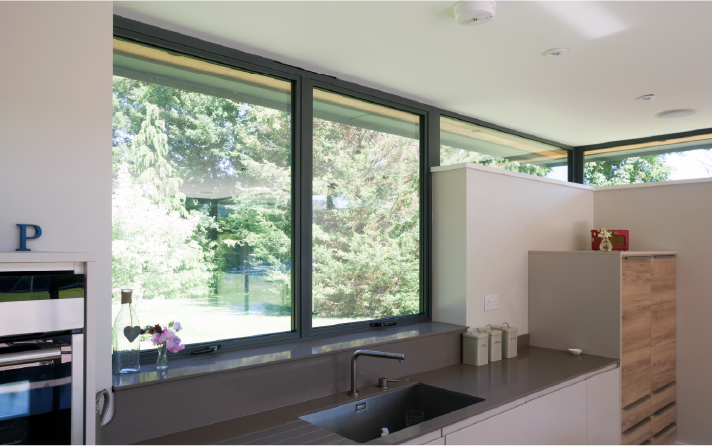

Customisable options

Our aluminium tilt and turn windows combine versatility with style, available in a wide range of designs, colours, handle types, and glazing options.

Custom styles

Choose from a range of modern and traditional styles.

Multiple colours

Select from a vast palette of single and dual colours.

Handle choices

Pick your perfect tilt and turn window handles.

Glazing options

Double glazed and triple glazed options available.

Opening configurations

The window operates in three stages: fully locked for security, tilted inward at the top for ventilation, or fully opened inward from the side for unrestricted access and airflow.

In the locked position, the window is fully sealed to deliver outstanding security, thermal performance, and weather resistance. Advanced multi-point locking mechanisms ensure a tight, secure fit within the frame, helping to reduce heat loss, prevent draughts, and provide peace of mind all year round.

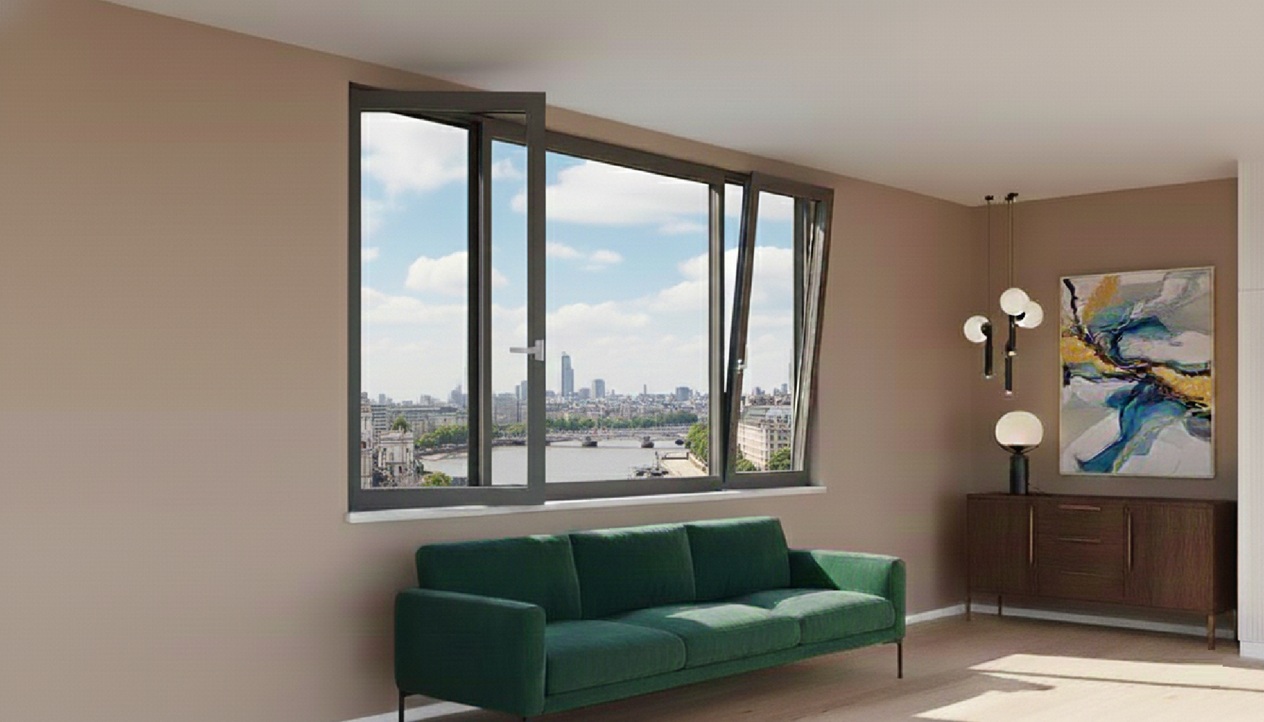

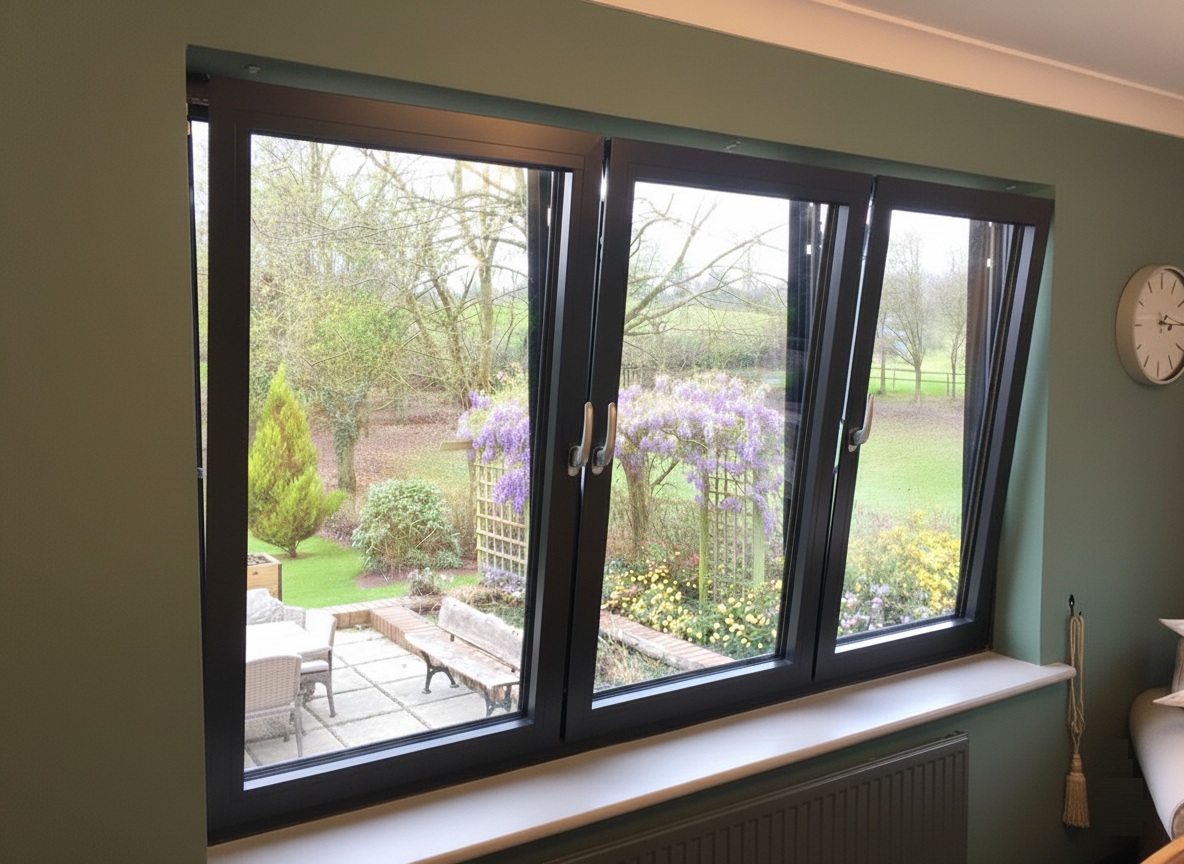

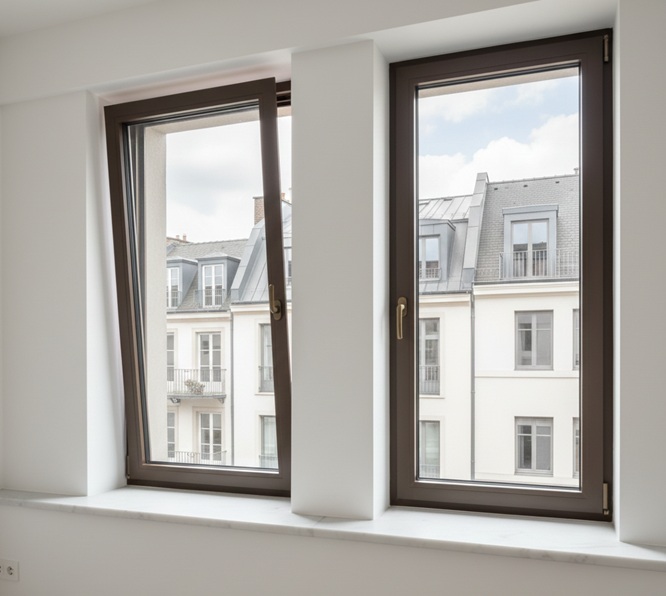

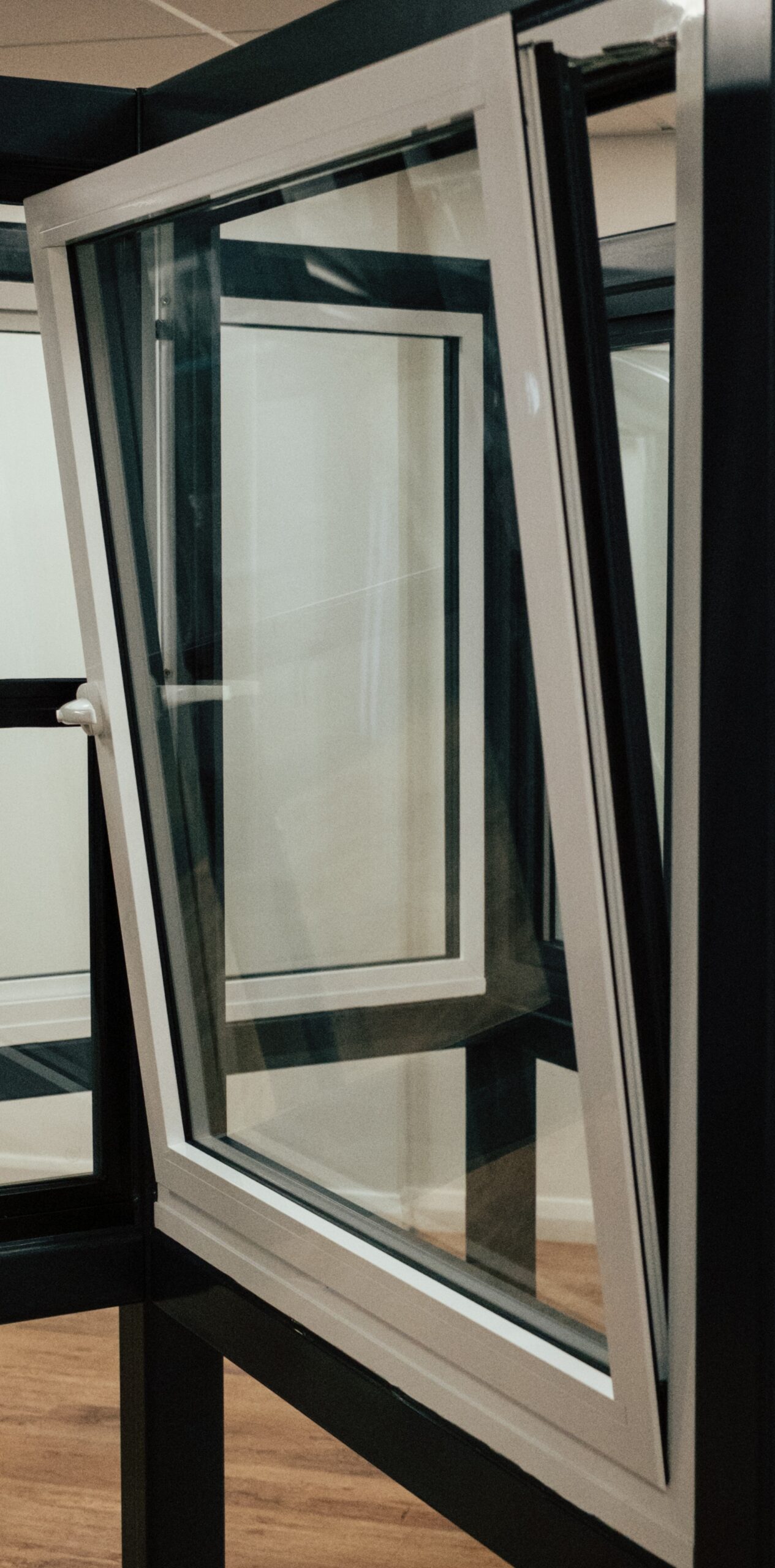

Tilt mode allows the top of the window to open inward slightly, creating a controlled flow of fresh air while maintaining a high level of security. This setting is ideal for daily ventilation, helping to improve indoor air quality without compromising comfort, safety, or energy efficiency.

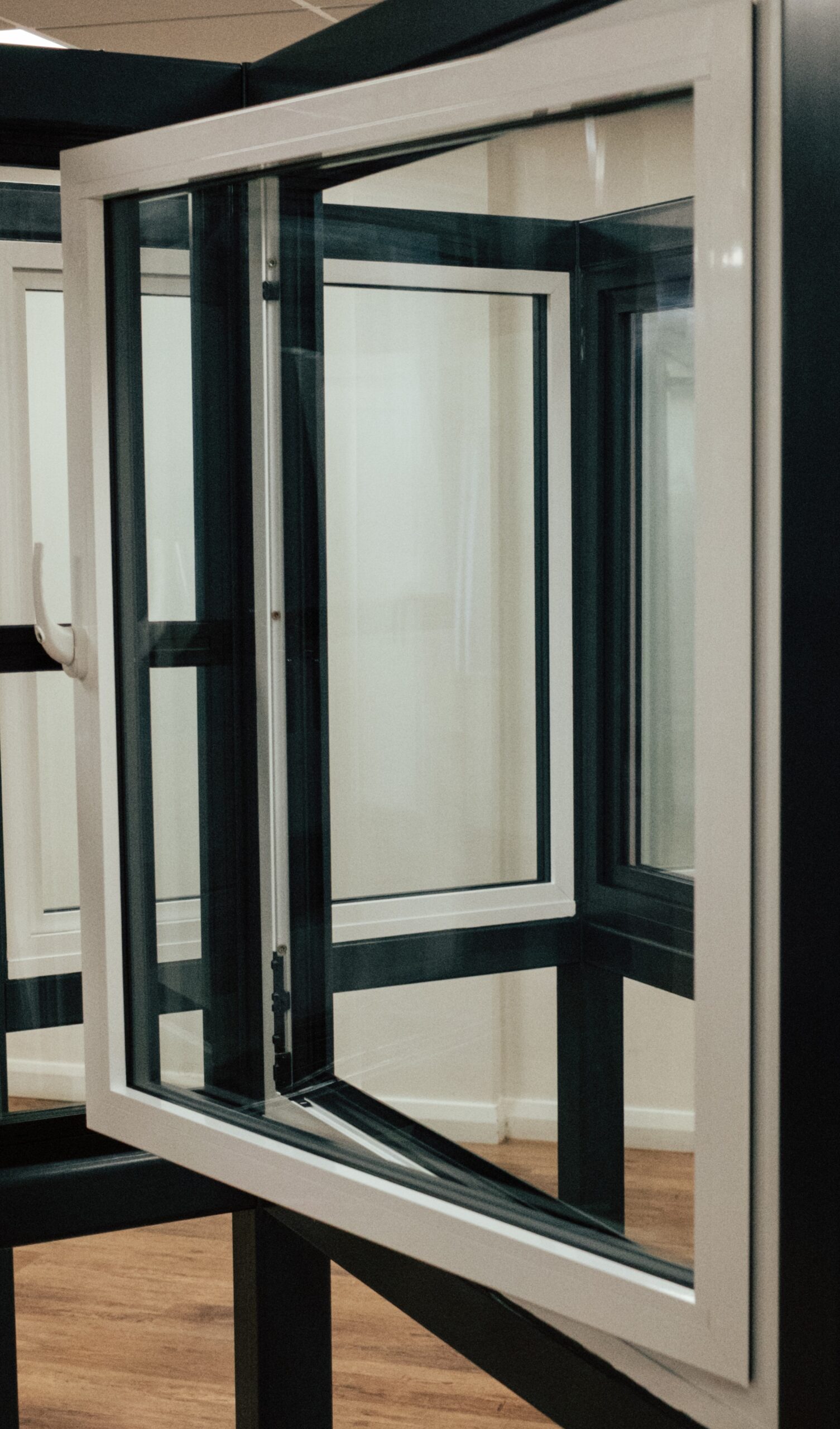

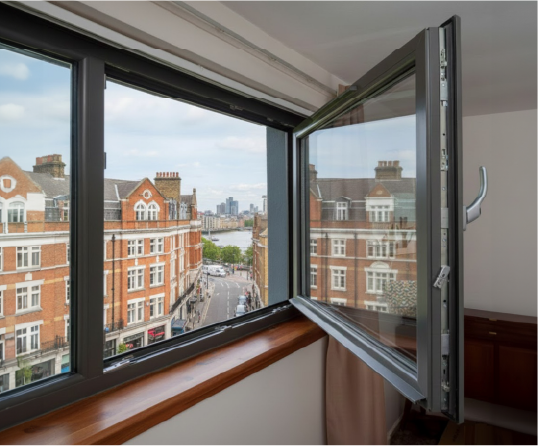

In turn mode, the window opens fully inward from the side, offering unrestricted airflow and complete accessibility. This function makes cleaning both sides of the glass effortless from inside the home, while also providing a practical escape route and a wide, open feel to your living space.

Stock colour options

Choose from four stock colours – white, anthracite grey, anthracite grey on white, and black.

White

Grey

Grey on White

Black

Special colour options

Alternatively, select from hundreds of RAL colour options or KL colours for a custom finish.

RAL Colour Range
250+ more

KL Colour Range

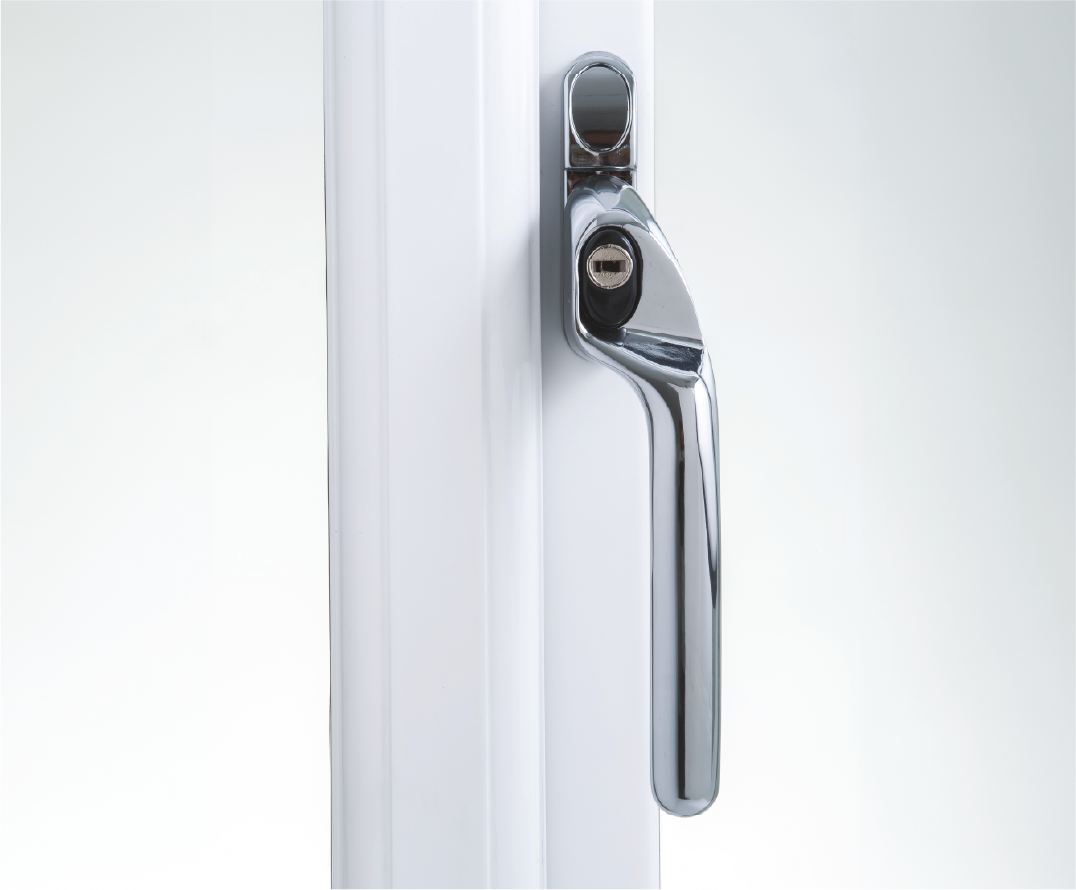

Tilt and Turn Window Handles

Black, white, grey, polished chrome, satin silver and polished gold tbt handles

Trickle Vents

Improving indoor air quality, reducing condensation, and maintaining security and heat efficiency.

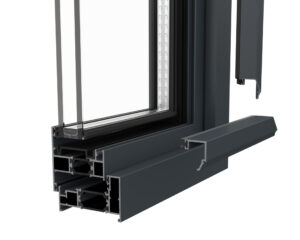

Quick Glaze Knock-in bead (Alitherm 400)

Designed for faster, easier installation, reducing time on site without compromising quality.

Key Specifications

Our aluminium window systems meet these standards as a minimum, with some products offering upgrades or higher specifications:

BS6496 marine grade polyester powder coating
Frame depth 70mm
Max o/a width 1200mm
Max o/a height 2100mm
Max o/a weight 90kg
93.5mm sash and outer frame sightline
U value 1.4 W/m2k with double glazing

U value 1.1 W/m2k with triple glazing
Optional PAS24 security upgrades
85mm, 150mm, 190mm and 2255mm sill sizes
Air, water and wind tested
20mm, 30mm and 42mm add-ons available
Optional trickle vents

Take a look for yourself

Explore our aluminium tilt and turn window range in detail. This brochure highlights key features, opening options, performance benefits, and finishes, helping you understand how tilt and turn windows deliver flexible ventilation, easy cleaning, and secure everyday living.

Download Brochure

Frequently Asked Questions

Everything you need to know about aluminium tilt and turn windows, answered in one place.

A tilt and turn window offers two opening styles for complete versatility. One is similar to a casement window, with side hinges and a handle that allow for opening inward. The other uses a bottom hinge, activated by the same handle but pulling downwards to let air in from above. They may come in single or double designs, all of which you can customise fully with Atlas.

Thanks to multiple locking points, tilt and turn windows are highly energy-efficient. The Alitherm 400i range is also thermally broken, ensuring cold air stays outside and warm air stays inside.

You can choose how much air you want to enter your property, depending on the weather. They are completely versatile and can be designed to match your home’s style. They’re also easier to clean, and may be safer for young children as fingers cannot become trapped as easily.

All our Smart systems are made for total security. They’re also weather tested and offer an ‘A’ WER rating, ensuring warm air stays inside your home for lower bills.

Aluminium tilt and turn windows can be opened in two ways. The bottom hinge allows you to pull the handle from the top, bringing the pane inwards for a smaller gap.

Alternatively, you can use the same handle to activate the side hinge, pulling the window inwards from the side for a larger opening. Both styles use the same handle on the side for ease and a more compact design.

Discover other Window products at Atlas

What sets Atlas apart

For the highest quality tilt and turn window bottom hinge designs, choose Atlas. Our distinctive Alitherm range gives you assurance with robust security testing including industry-leading locking and hinge systems.

What’s more, every window offers energy cost savings thanks to thermally broken profiles and double or triple glazing.

Beyond our beautiful, practical designs, we also make the process easy for you. Take a look at our extensive range and contact us for a quote.

We’ll put you in touch with a trusted, third-party installer, who will talk you through your requirements and bring your vision to life. For durable, modern and user-friendly windows, get in touch today.
